Description
Metal tiles
Το πολύ χαμηλό βάρος ανα τετραγωνικό, η ευκολία και η ταχύτητα τοποθέτησης, η αντοχή στον παγετό και το περιορισμένο κόστος κατασκευής – λόγω των μικρών διατομών ξυλείας που απαιτούνται για την κατασκευή τους – είναι τα κύρια πλεονεκτήματα των μεταλλικών κεραμιδιών. Διατίθενται σε μορφή φύλλων με συγκεκριμένο πλάτος και επιθυμητό μήκος, σε ποικιλία χρωμάτων RAL.
Colored trapezoidal sheet metal
Thickness: 0.40mm
Width: 100cm useful
Length: in the desired dimensions
Sheet metal French tile
Thickness: 0.45mm
Width: 83 cm (72 cm usable)
Length: in the desired dimensions (step 33cm)
Sheet metal Roman tile
Thickness: 0.45mm
Width: 122 cm (100 cm useful)
Length: to the desired dimensions (step 35cm)
Corrugated sheet metal
Thickness: 0.45mm
Width: 83 cm wide (72 cm usable)
Length: to the desired dimensions (there is no step)

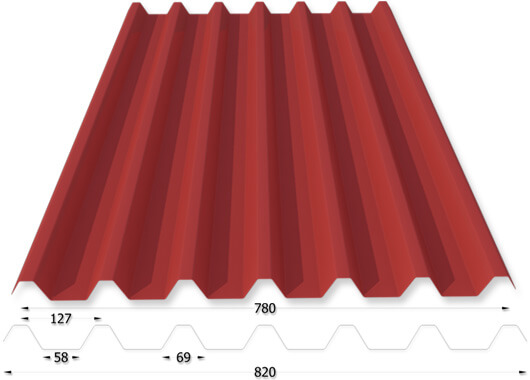

Trapezoidal sheet metal
Thickness: 0.45mm
Width: 125cm wide (90.7cm useful) 110cm wide (78cm useful)
Length: to the desired dimensions (there is no step)
Metal tile panels
Trapezoidal panel
Trapezoidal panels are available in two different types depending on the existing ribs.
There are panels with 3 or 5 peaks per meter. The useful clear width of the panels is 1 meter.
Produced thickness: 2cm to 10cm. The usual thicknesses that are mainly worked are 3cm and 4cm.
Width: 108 cm (100 cm useful)
Made-to-order lengths: The length of the trapezoidal panels is delivered to the exact length desired by the customer from 1.80m to 15m.
Roman tile panel
Thickness: average thickness 60mm (maximum 95mm)
Width: 108 cm (100 cm useful)
Length: from 1.75m to 15m (step 35cm)
Side cover panels
The siding panel provides solutions to many construction problems by replacing the classic masonry in various types of buildings. We can choose between four configurations as shown in the next graphic.
It is produced in a thickness of 3cm to 10cm and in the exact length desired by the customer. Its useful width is 1 meter. It is usually produced in white color, but to order in the shades of the RAL color chart desired by the customer.
Parts for panels
Side cover profile – socoro
Korfias
Scallops
Filling combs
.
In our company, all the necessary fixing and sealing materials for panels, metal tiles and sheet metal are available
• metal drill screws – panel screws
• wood rings
• metal caps for panels
• joint glues - silicones - mastics
• rivets
• torx cement screws
• sealing tapes
also upon order, all requested special metal pieces such as right angles, P profiles, blades, etc. are delivered.
